Ductile iron contains nodular graphite in a matrix structure ranging from all ferrite to all pearlite. Intermediate grades have different ratios of pearlite to ferrite depending on the specific grade being produced.
Ductile iron barstock is an excellent alternative to carbon steel because of its similar properties and superior machinability
Hualong produces a wide range of ductile iron grades conforming to ASTM A536, QT, and ENJ standards. All grades have similar advantages:
Each grade is designated by its mechanical properties with the most common listed in the table below:
HBar ductile iron is available in multiple standard grades, delivering consistent structure, predictable machining behavior, and steel-like performance with lower machining cost.

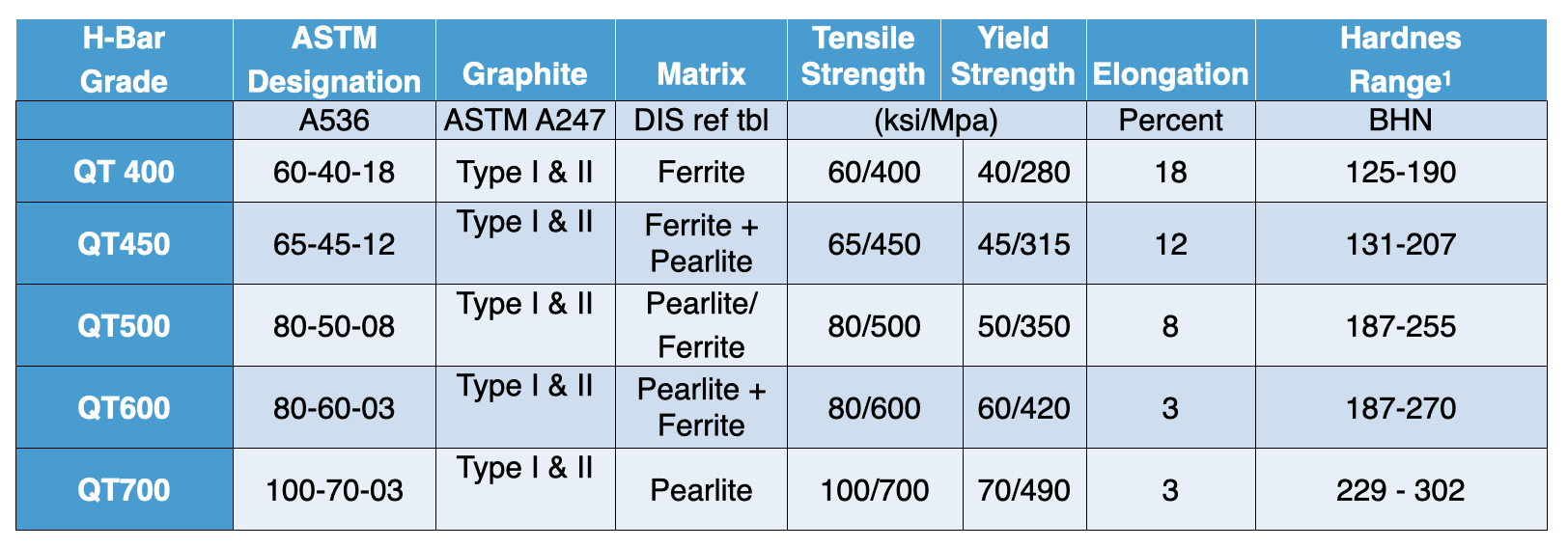

Hualong produces 5 standard grades of ductile iron, each grade is designated by its mechanical properties with the most common listed in the table below:
Custom variations made for specific requirements and specifications are also available, contact us for more information
More details of ductile iron grades, description of properties and microstructures are available in the JB/T standard (click on link)
1For reference only, specific hardness values depend on section size and location and are listed in the product specifications
More details of ductile iron grades, description of properties and microstructures are available in the JB/T standard.
